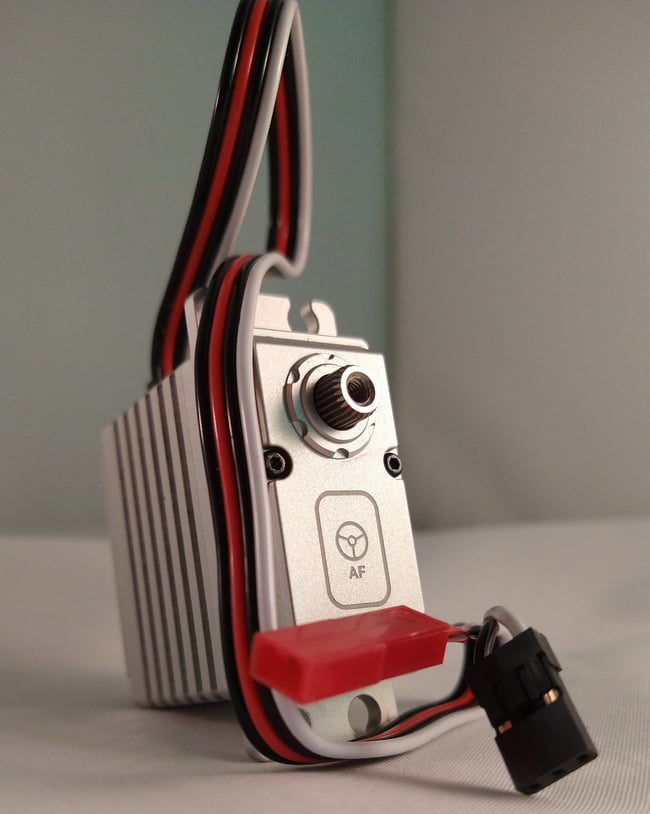

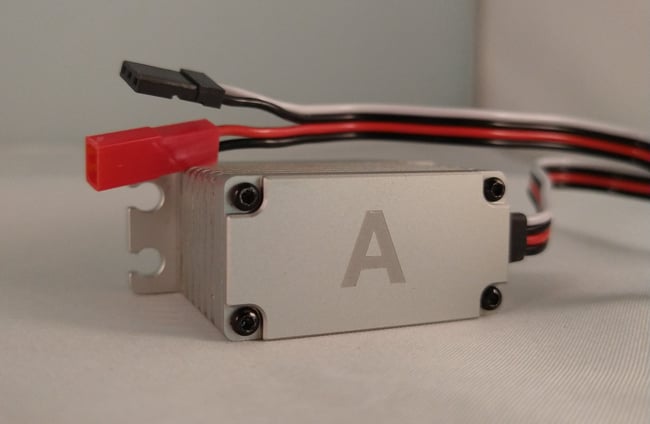

Servo Model A

Direct power from 2s to 4s LiPo!
7.4v - 16.8

The model A is overdesigned for durability and power with oversized gears and dowel pins. It's built to handle the abuse of the toughest, solid axle rock bouncers and excellent for those wanting to use a smaller esc but not sacrifice turning power.

Your model A will include a high quality silicone wire lead to solder to your esc input for direct power.

You can send your esc to me to have the direct power port soldered on for $20. Just send a message when you order.

-- Direct power to run directly from your battery
-- 25T output spline
-- 2mm dowel pins
-- Large, high-precision steel gears
-- Full CNC aluminum hulls and structure
-- High quality brushless motor
-- triple ball bearings
-- Water proof

SPECIFICATIONS:
***Listed specs are the consistent outputs under heavy use and NOT the inflated highest numbers commonly used by other brands.***

Operating Voltage: 7.4-16.8 V

Operating speed:
0.15sec/60° @ 8.4V
0.13sec/60° @ 11.4V
0.12sec/60° @ 12.4V
0.10sec/60° @ 16.8V

Stall Torque:
560 oz-in @ 8.4V
720 oz-in @ 11.4V
768 oz-in @ 12.4V
832 oz-in @ 16.8V

Dimensions: 40*20*41.5mm

Weight: 3.2oz

Connector Wire Length: 12"

1 year warranty for manufacturer defects and broken gears.
